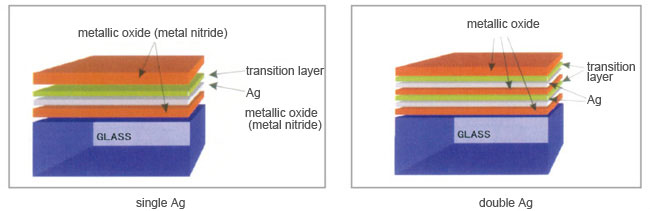

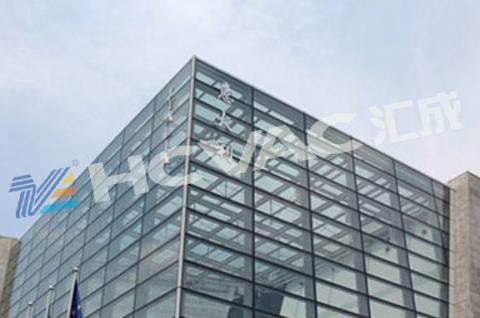

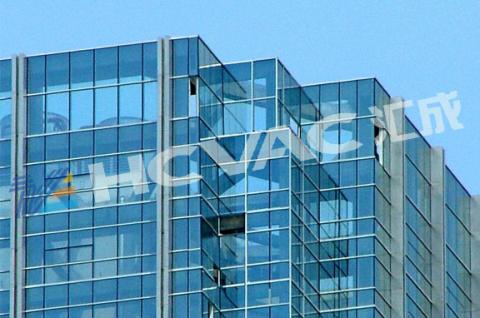

LOW-E magnetron sputtering coating production line, mainly used for single and double low-e glass coating, and steel single, double silver Low-E glass coating.Low-E glass is used for energy-saving construction glass curtain wall, doors and windows glass, can insulate heat and save energy, prevent light pollution. Vacuum magnetron sputtering method on glass surfaces coated with a multilayer film system product composed of metal or other compounds, the coated glass has a higher visible light transmittance for infrared ( especially far infrared ) has a very high reflectivity , a good heat-insulating properties.
1．Ultimate vacuum：7x10-4Pa.
2．Production cycle40~120 S/frame
3．Basic frame size：859*1500mm (can be customized)
4．Film uniformity：±2%
5．Film stability：up to international standards
Mainly used for single and double low-e glass coating, and steel single, double silver Low-E glass coating.
