High-end stainless steel sheet ion coating machine
Product brief introduction
The high-end stainless steel sheet ion pvd coating machine is designed for stainless steel sheet to get a decorative coating by ion plating technique, the ion plating layer has a real metal texture, which is much different from chimical coating. It is wid

The high-end stainless steel sheet ion pvd coating machine is designed for stainless steel sheet to get a decorative coating by ion plating technique, the ion plating layer has a real metal texture, which is much different from chimical coating. The chamber diameter of this series can be 1800-2300mm, and height can be 3600-7200mm, it can coat three sheets that size is 1220X4000mm at lest; with three sets of large power vacuum pumping systems, high pumping speed,short cycle time, with 34-56 pieces of roud arc target, they are installed reasonable, at the same time, it equipped with pulsed bias system, which make high adhesion coating, uniform color coating. Match with touch screen + PLC control system achieved full automatic of equipment, manual and auto can be switched any time, this make machine reliable and easy operation. The colors of this equipment can do are gold, silver, brown, black, rose gold, coffee, raibow, blue,etc decorative coatings, and it's widely used in metals,furniture,lights,hardware, car parts and aircrafts etc, all the performance indicators of this machine have reached international advanced level, it was exported to Europe and the United States developed the international market.

Mode

HCCA-1800

HCCA-2000

HCCA-3000

HCCA-2000

HCCA-3000

HCCA-4000

HCCA-5000

Vacuum chamber dimension

φ1800x2000

φ2000x2000

φ3000x3000

φ2000x6000

φ3000x6000

φ4000x8000

φ5000x10000

Vacuum system

Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump

Coating system

arc evaporation source,coating auxiliary ion dedicated power supply

Inflation system

Mass flow meter

Mass flow meter

Mass flow meter

Mass flow meter

Mass flow meter

Mass flow meter

Mass flow meter

Control mode

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Manual or automatic

Ultimate vacuum

5.0x10-4Pa

5.0x10-4Pa

5.0x10-4Pa

5.0x10-4Pa

5.0x10-4Pa

5.0x10-4Pa

5.0x10-4Pa

Remark

Above machine parameters for your reference only, specific according to customers' special requirement of practical process design.

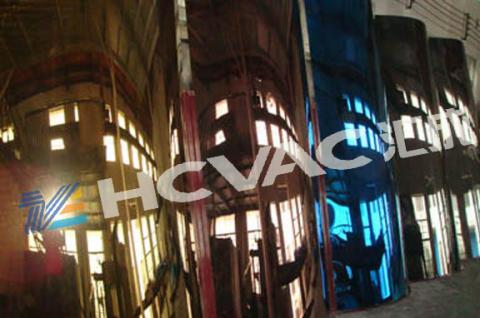

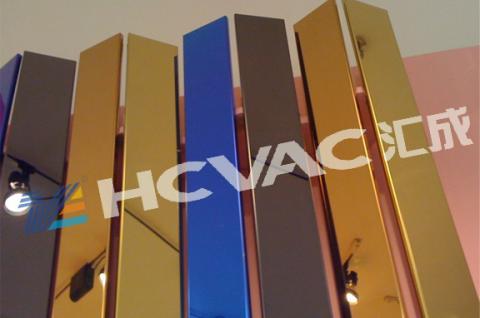

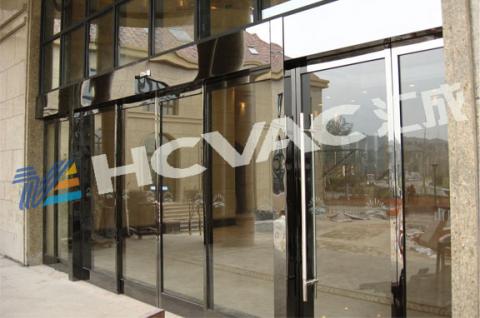

It's widely used in metals, furniture, lights, hardware, car parts and aircrafts etc.
