Rainbow color vacuum coating machine
Product brief introduction
Rainbow color vacuum coating machine widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, bottle caps, perfume cap etc.Machinable materials including ABS, PS, PP,

Rainbow color vacuum coating machine adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates,  to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.

Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.

Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.

Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;


Coating color: gold, silver, red, blue, green, purple, multi color, and so on.

We can make design the dimension of the vacuum chamber according to your requirement. We can also design and configure the vacuum unit and electric controlling system according to your requirement.

Mode HCRE-1200 HCRE-1400 HCRE-1600 HCRE-180O HCRE-2000
Vacuum chamber dimension 1200×1500 1400×1950 1600×1950 1800×1950 2000×1950
Film type Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc.
Power source supply Thermal evaporation power, ion bombard power, RF power
Vacuum chamber structure Vertical double/single door, horizontal single door, pump system postposition
Vacuum system Diffusion pump +Roots pump +Mechanical pump +Holding pump
Ultimate vacuum  8×10-4 pa(no-loading, net room)
Pumping time Pump from atmosphere to 5.0*10-2,6 minutes
Workpiece motion mode 6 axis/8 axis/9 axis Public rotation/Frequency control
Control mode Manual/Automatic all-in-one mode, Touching screen + PLC
Remark We can design the dimension of the vacuum chamber according to customer’s demand

Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, bottle caps, perfume cap etc.Machinable materials including ABS, PS, PP, PC, PVC,  TPU,PET, nylon, metal, Boli, glass, ceramics,metal, etc.

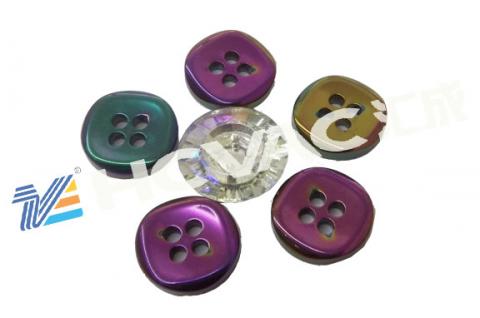

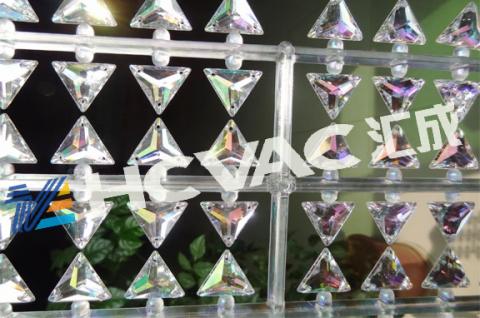

七彩钮扣样品图 七彩钮扣样品图1 七彩钮扣样品图2
