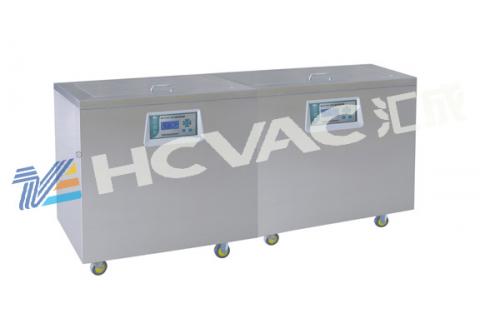

Ultrasonic gas phase cleaning machine, the use of non-flammable organic solvents such as trichloroethylene, trichloroethane, three or 141B as cleaning agent. Suitable for cleaning electronic components and circuit board of rosin, precision machinery parts of grease, dirt on watchband and watchcase, with quick cleaning speed, easy drying characteristics, strong decontamination ability etc.. The cleaning process: ultrasonic cleaning→steam bath washing→freeze drying
All stainless steel structure, acid and alkali resistance, good appearance.
Built-in refrigeration system, effectively prevent the volatilization of solvent.
Set the level control system, to ensure the normal operation of machine.
Set the solvent filtration system, ensure the cleanliness of cleaning agent, reduce the production cost.
Set the solvent heating and automatic constant temperature system, temperature control range of 30 ℃ -110 ℃.
Set quick freeze drying system, the drying.
■ operating frequency: 28KHz, 40KHz, 60 KHz, 100KHz
■ ultrasonic power: 1500W, 1800W
■ heater power: 3Kw
■ cleaning tank diameter size: 500*800*380mm
■ power: three phase four wire, 380V
