Hollow cathode ion coating equipment
Product brief introduction
The concentration of hollow cathode plasma ion is high, high ionization rate, the deposited film is with a good adhesion, bright color. It is special used for hard coatings on tools and moulds, and decorative coatings too, such as TiN,TiCN, TiC, etc.

This machine is equipped with multi-hollow cathode guns, which adopts hollow cathode effect of glow discharge within tantalum tube, lead to the tantalum tube heated to incandescence then emission electron strongly and arc discharge, at the same time, come into be a high-density plasma electron flow, and flow into target then make it evaporate, vaporization, ionization(or effected by reactive gas)coating on substrates. There is special jigs for substrates installed in the machine, which can make substrates rotation themselves, with PID temperature controller, temperature control accuracy is ±1℃.

The concentration of hollow cathode plasma ion is high, high ionization rate, the deposited film is with a good adhesion, bright color. It is special used for hard coatings on tools and moulds, and decorative coatings too, such as TiN,TiCN, TiC, etc.

HCSH-380 Usable plasma volume Application technology target
Ø400x H450mm CMARC 2pcs×3
Production cycle Standard coating Custom coating
3-5hours/cycle TiN,CrN,AlTiN,AlCrN TiCN,TiAlCrN,TiAlSiN , DLC
Hardware Software Production/batch
Magnetic molecular pump
Pulse BIAS supply / HIPIMS
Plasma etching
Industrial PLC system
Industrial PC system
HCVACExpert remote diagnosis system
EndMills D4×50mm=864 D10×75mm=264
Insert D18×5mm=1440
Hobs D80×80mm=15
HCSH-600 Usable plasma volume Application technology target
Ø400x H450mm CMARC 2pcs×3
Production cycle Standard coating Custom coating
4-6hours/cycle TiN,CrN,AlTiN,AlCrN TiCN,TiAlCrN,TiAlSiN , DLC
Hardware Software Production/batch
Magnetic molecular pump
Pulse BIAS supply / HIPIMS
HCD plasma etching
Industrial PLC system
Industrial PC system
HCVACExpert remote diagnosis system
EndMills D4×50mm=1920 D10×75mm=512
Insert D18×5mm=3276
Hobs D80×80mm=40
HCSH-650 Usable plasma volume Application technology target
Ø400x H450mm CMARC 4pcs×3
Production cycle Standard coating Custom coating
3-6hours/cycle TiN,CrN,AlTiN,AlCrN TiCN,TiAlCrN,TiAlSiN , DLC
Hardware Software Production/batch
Magnetic molecular pump
Pulse BIAS supply / HIPIMS
Plasma etching
Industrial PLC system
Industrial PC system
HCVACExpert remote diagnosis system
EndMills D4×50mm=4032 D10×75mm=880
Insert D18×5mm=6400
Hobs D80×80mm=64
HCSH-900 Usable plasma volume Application technology target
Ø400x H450mm CMARC 6pcs×3
Production cycle Standard coating Custom coating
5-8hours/cycle TiN,CrN,AlTiN,AlCrN TiCN,TiAlCrN,TiAlSiN , DLC
Hardware Software Production/batch
Magnetic molecular pump
Pulse BIAS supply / HIPIMS
Plasma etching
Industrial PLC system
Industrial PC system
HCVACExpert remote diagnosis system
EndMills D4×50mm=8640 D10×75mm=2200
Insert D18×5mm=1200
Hobs D80×80mm=140



Type name colour coating Micro
hardness
(HV0.05)
Max.
Usage
temperature
(℃)
Friction-
(fretting)
coefficient
Thickness
 (um)
Nitrogen
ceramics
HAL Black ALTiN 3800 900 0.6 2.5±0.5
HAL Plus Black ALTiN 3800 900 0.6 4±0.5
HAL Mini Black ALTiN 3500 900 0.6 1.5±0.5
HAL B Atropurpureus ALTiN 3600 900 0.6 2.5±0.5
HAR Silver CrN 2000 700 0.3 3±0.5
HAT Golden TiN 2400 600 0.5 3±0.5
HAS Bronze AlTiSiN 3800 1000 0.4 3±0.5
HATC Gray TICN 3500 400 0.2 2±0.5
HATC Plus Bronze TICN 3200 400 0.25 2±0.5
HART Golden CrTiN 2500 600 0.4 2.5±0.5
HRA Blue grey AlCrN 3500 1000 0.4 4±0.5
HRAT Gray AlTiCrN 3200 900 0.4 3±0.5
DLC HCC Black CrN+W-C:H 2200 300 0.2 2±0.5
HCMC Black Cr+W-C:H+DLC 1800 300 0.1 2±0.5



Name Low
alloy
steel
High
alloy
steel

Stainless
steel

Cast
iron
Copper Bronze Si<12%
Al alloy
Si>12%
Al alloy
Wood Plastic Drill Drill
cutting
EndMill Milling
tool
Turnin
insert
Hob Slottin
cutter
Hob
slottin
cutter
Tap
HAL Plus A- A A- A             A A   A- A A A A
HAL Mini A- A A A                 A-
HAL B A- A A- A             A- A- A A- A-
HAR         A A     A A                 A-
HAT A               A A A- A- A- A- A- A- A- A- A-
HAS A-   A-               A A A A
HATC             A A                     A-
HATC Plus             A A             A-       A
HART A A- A-   A- A-     A A A A A A- A- A- A- A-
HRA A- A A A- A- A- A- A- A- A- A- A- A- A- A-
HRAT A A A A- A- A- A- A- A- A- A A A A A A A A
HCC           A A A- A A                 A
HCMC           A A A- A A                 A-
  A:Applicable of existing materials or processing environment
A-:Can be used in the  materiial and  processing environment



Suitable for tools and mold hard coating, also can be used for the decorative coating of other hardware.

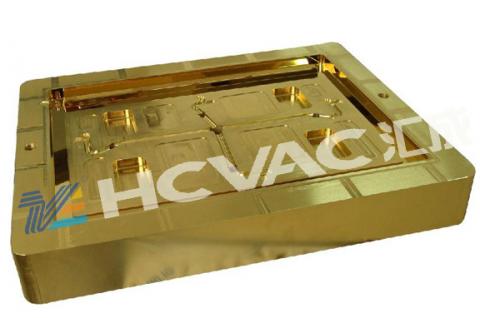

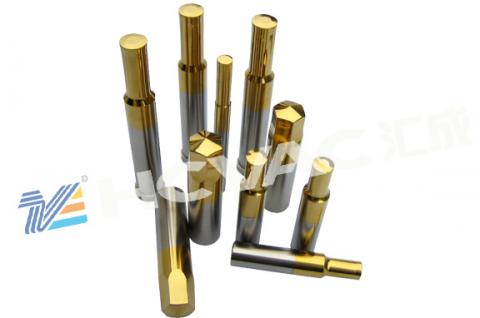

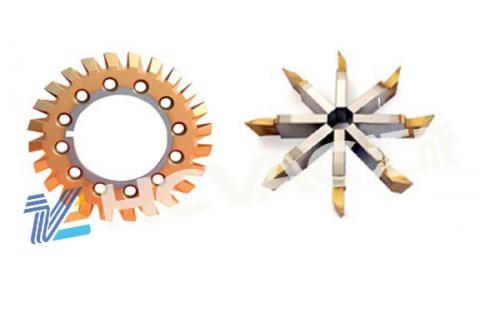

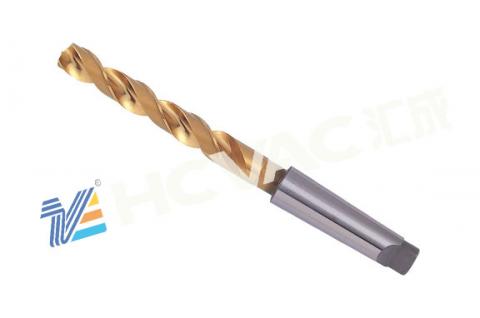

模具 冲压件 钻刀 刀具
