Mold Hard Coating Equipment
Product brief introduction
Mold Hard Coating Equipment can increase the comperitiveness of the products, significantly longer service lives, shorter cycle times and better operational performance, to increase productivity and redece unit costs.

Mold Hard Coating Equipment can increase the comperitiveness of the products, significantly longer service lives, shorter cycle times and better operational performance, to increase productivity and redece unit costs.

After coating, it ensures better mould filling, because the melt flows longer. The injection pressure remains effective for longer, reducing sink marks.It reduces the tendency to stick, making mould release easier. Usually, the use of release agents can be avoied.

Higher wear resistances

When highly abrasive melts are processed, wear is drastically reduced by the hardness of the coating. In addition, the coating protects against mould damage during cleaning and maintenance.

Better quality of the injection moulded products

Thanks to better mould filling, less distortion and brilliant tool surfaces, produced parts are of better quality with lower rejects.

Good wear indicator

Colour changes of the coated surface enable wear to be detected early so that expensive moulds and inserts can be reconditioned in good time.

Ease of cleaning

Mould deposits are reduced and can be removed by simple means. Longer cleaning intervals and speedier cleaning increase the tool availability.

Running dry

Thanks to low frictional coefficients, moving mould parts (e.g. ejectors, slides, guide components, unscrewing cores) are effectively protected against scuffing or seizing, even when running dry.

The vacuum sealing of chamber and the interior design and material of moving parts are under consideration of high-temperature bear, assembling high efficiency roundness arc evaporation source or rectangular flat arc evaporation source. We can also install hollow cathode gun and impact resistance bias power supply, to ensure the density and reactivity of plasma, increase the compactness and adhesion of coatings. Substrates can be three-dimensional motion, to enhance the uniform of coating. The full automatic control processing is steady and perfect.

It can deposit TiN,TiC,TiCN,TiAlCN,TiCrN,TiCrCN,TiAlCrN, multilayer super hard coatings.

HCSH-380 Usable plasma volume Application technology target
Ø400x H450mm CMARC 2pcs×3
Production cycle Standard coating Custom coating
3-5hours/cycle TiN,CrN,AlTiN,AlCrN TiCN,TiAlCrN,TiAlSiN , DLC
Hardware Software Production/batch
Magnetic molecular pump
Pulse BIAS supply / HIPIMS
Plasma etching
Industrial PLC system
Industrial PC system
HCVACExpert remote diagnosis system
EndMills D4×50mm=864 D10×75mm=264
Insert D18×5mm=1440
Hobs D80×80mm=15
HCSH-600 Usable plasma volume Application technology target
Ø400x H450mm CMARC 2pcs×3
Production cycle Standard coating Custom coating
4-6hours/cycle TiN,CrN,AlTiN,AlCrN TiCN,TiAlCrN,TiAlSiN , DLC
Hardware Software Production/batch
Magnetic molecular pump
Pulse BIAS supply / HIPIMS
HCD plasma etching
Industrial PLC system
Industrial PC system
HCVACExpert remote diagnosis system
EndMills D4×50mm=1920 D10×75mm=512
Insert D18×5mm=3276
Hobs D80×80mm=40
HCSH-650 Usable plasma volume Application technology target
Ø400x H450mm CMARC 4pcs×3
Production cycle Standard coating Custom coating
3-6hours/cycle TiN,CrN,AlTiN,AlCrN TiCN,TiAlCrN,TiAlSiN , DLC
Hardware Software Production/batch
Magnetic molecular pump
Pulse BIAS supply / HIPIMS
Plasma etching
Industrial PLC system
Industrial PC system
HCVACExpert remote diagnosis system
EndMills D4×50mm=4032 D10×75mm=880
Insert D18×5mm=6400
Hobs D80×80mm=64
HCSH-900 Usable plasma volume Application technology target
Ø400x H450mm CMARC 6pcs×3
Production cycle Standard coating Custom coating
5-8hours/cycle TiN,CrN,AlTiN,AlCrN TiCN,TiAlCrN,TiAlSiN , DLC
Hardware Software Production/batch
Magnetic molecular pump
Pulse BIAS supply / HIPIMS
Plasma etching
Industrial PLC system
Industrial PC system
HCVACExpert remote diagnosis system
EndMills D4×50mm=8640 D10×75mm=2200
Insert D18×5mm=1200
Hobs D80×80mm=140



Type name colour coating Micro
hardness
(HV0.05)
Max.
Usage
temperature
(℃)
Friction-
(fretting)
coefficient
Thickness
 (um)
Nitrogen
ceramics
HAL Black ALTiN 3800 900 0.6 2.5±0.5
HAL Plus Black ALTiN 3800 900 0.6 4±0.5
HAL Mini Black ALTiN 3500 900 0.6 1.5±0.5
HAL B Atropurpureus ALTiN 3600 900 0.6 2.5±0.5
HAR Silver CrN 2000 700 0.3 3±0.5
HAT Golden TiN 2400 600 0.5 3±0.5
HAS Bronze AlTiSiN 3800 1000 0.4 3±0.5
HATC Gray TICN 3500 400 0.2 2±0.5
HATC Plus Bronze TICN 3200 400 0.25 2±0.5
HART Golden CrTiN 2500 600 0.4 2.5±0.5
HRA Blue grey AlCrN 3500 1000 0.4 4±0.5
HRAT Gray AlTiCrN 3200 900 0.4 3±0.5
DLC HCC Black CrN+W-C:H 2200 300 0.2 2±0.5
HCMC Black Cr+W-C:H+DLC 1800 300 0.1 2±0.5



Name Low
alloy
steel
High
alloy
steel

Stainless
steel

Cast
iron
Copper Bronze Si<12%
Al alloy
Si>12%
Al alloy
Wood Plastic Drill Drill
cutting
EndMill Milling
tool
Turnin
insert
Hob Slottin
cutter
Hob
slottin
cutter
Tap
HAL Plus A- A A- A             A A   A- A A A A
HAL Mini A- A A A                 A-
HAL B A- A A- A             A- A- A A- A-
HAR         A A     A A                 A-
HAT A               A A A- A- A- A- A- A- A- A- A-
HAS A-   A-               A A A A
HATC             A A                     A-
HATC Plus             A A             A-       A
HART A A- A-   A- A-     A A A A A A- A- A- A- A-
HRA A- A A A- A- A- A- A- A- A- A- A- A- A- A-
HRAT A A A A- A- A- A- A- A- A- A A A A A A A A
HCC           A A A- A A                 A
HCMC           A A A- A A                 A-
  A:Applicable of existing materials or processing environment
A-:Can be used in the  materiial and  processing environment

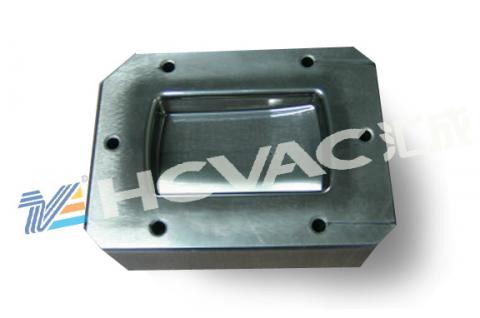

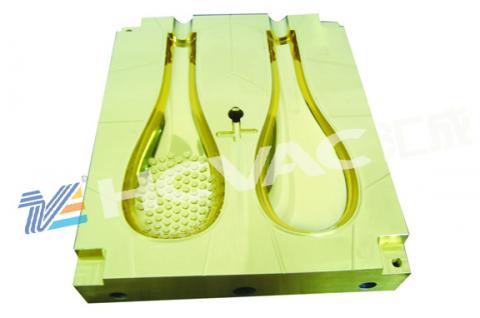

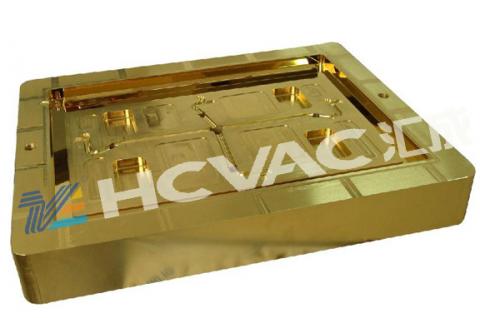

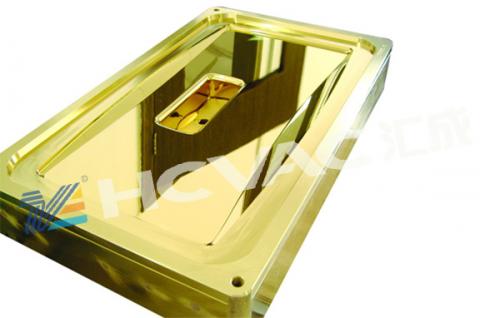

Injection molding tools, mold parts.
